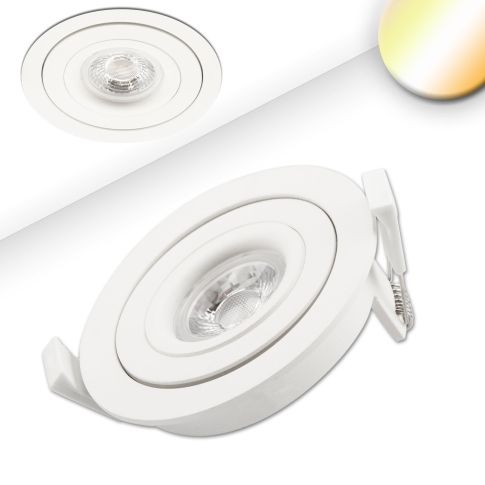

LED Recessed spotlight SUNSET with variable depth, white, 9W, 45°, 2000-2800K, dim-to-warm
In stock
Article number
113304
| Article number | 113304 |
|---|---|
| Product description | LED Recessed spotlight SUNSET with variable depth, white, 9W, 45°, 2000-2800K, dim-to-warm |
| GTIN - EAN | 9009377051951 |
| Features |        |
| Special features | Trafo dimensions: 116x40x26mm |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 9 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 8 W |
| Luminous flux in lumen | 650 lm |
| Efficiency in lm/W | 81 |
| Color temperature | 2000K - 2800K |
| CRI Ra | 90 |
| Beam angle | 45° |
| Beam angle type | fixed |
| Dimmable | Yes |
| Dimming type | Phasenan-/Abschnitt |
| Dimming Specifications | Dimming range: 20-100% of the light output with TRIAC dimmer | Recommendation: use trailing edge dimmer | SUNSET dimming 20%=2000K 40%=2300K 100%=2800K, flicker rate depends on the dimmer used and the type of dimming | Flickerfree in undimmed state |
| Protection class | IP42 |
| Outdoor area | No |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 274 |
| Height in mm | 39,0 |
| Diameter in mm | 95.00 mm |
| Hole cut-out | 83 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 37 |
| ext. Transformer length | 116.00 |
| ext. Transformer width | 40.00 |
| ext. Transformer height | 26.00 |
| Lifetime L70|B10 | 38000 |
| Useful life L70|B50 | 57000 |
| Useful life L80|B50 in hours | 50000 |
| Guarantee in years | 2 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
