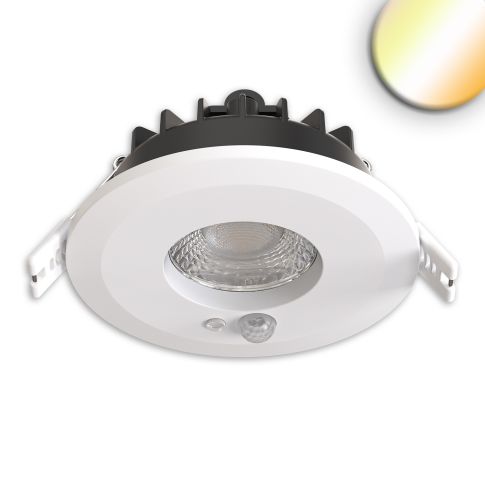

LED Recessed spotlight Vario-68 with PIR sensor 6W, 60°, 2700|3000|4000|6000K, IP65, CRI90, white
In stock
Article number
117337
| Article number | 117337 |
|---|---|
| Product description | LED Recessed spotlight Vario-68 with PIR sensor 6W, 60°, 2700|3000|4000|6000K, IP65, CRI90, white |
| GTIN - EAN | 9009377174964 |
| Features |        |
| Special features | 2x2-poles (L+N) 0.5-2.5mm² connection box suitable for further wiring + additional switched L' output for connecting additional lights (master-slave, max. switching capacity 200VA). Adjustable detection radius (45° angle): Low < 0.5-1m | Medium < 1-2m | High < 3-5m. Switch on only in darkness (moon), from dusk (half sun), also during the day (sun). Switch-on duration 30s, 3m, 10m. Sensors can be deactivated via OR (override) setting for manual switch-off/switch-on. |
| Nominal voltage | 220 - 240 V AC |
| Rated power | 6 W |
| Permissible ambient temp. | -20°C - 40°C |
| min. ambient temperature in °C | -20 |
| max. ambient temperature in °C | 40 |
| Active power | 6 W |
| Luminous flux in lumen | 580 lm |
| Efficiency in lm/W | 96 |
| Color temperature | 2700 K 3000K 4000K 6000K |
| CRI Ra | 92 |
| Beam angle | 60° |
| Beam angle type | fixed |
| Dimmable | No |
| Protection class | IP65 |
| Outdoor area | Yes |
| Housing material | Aluminum |
| Housing color | white |
| Weight in gramm | 170 |
| Height in mm | 40,0 |
| Diameter in mm | 88.00 mm |
| Hole cut-out | 70 mm |
| Hole cutout type | Circle |
| Installation depth in mm | 34,3 |
| Protection class | 2 |
| ext. Transformer length | 0.00 |
| ext. Transformer width | 0.00 |
| ext. Transformer height | 0.00 |
| Lifetime L70|B10 | 40000 |
| Useful life L70|B50 | 60000 |
| Useful life L80|B50 in hours | 52000 |
| Guarantee in years | 3 |
| Net price | N |
| Excess lengths | N |
| Bulky goods | N |
